Ergoseal

Industry Sealing Products

Find the perfect sealing solution for your applications. View some of our industry seal selections and products below.

Experience Confidence in Your Sealing Solutions

Ergoseal delivers value-added sealing solutions designed to enhance quality and supply chain efficiency across multiple industries.

  • Targeted Industries: We provide specialized sealing solutions for demanding applications in sectors including: Aerospace, Automotive, Commercial, Food & Beverage, and Industrial.
  • Quality Focus: Our wide range of sealing solutions are meticulously crafted to ensure superior quality.
  • Built for Durability: We engineer our products for exceptional durability and long-lasting performance.
  • Value Proposition: Our solutions aim to directly improve your product quality and overall supply chain efficiency.

Pool & Spa Seals

Type 6 Seal

Type 6

More +

PARAMETERS

  • Pressure: Up to 75 psi
  • Temperature: -49 to 400° F [-45 to 204° C]
  • Speed: Up to 1000 fpm (5 m/s)

FEATURES

  • Unitized, one-piece design ensures quick setup
  • Elastomer bellows provide flexibility to handle shaft movement and wear
  • For spa applications, we offer carbon primary rings and elastomers, ensuring durability and performance in high-temperature environments.

MATERIALS

  • Face/Primary Ring (Thermoset Carbon/Carbon/SiC/TC)
  • Seat/Mating Ring (Alumina/SiC/TC)
  • Secondary Seals (NBR/EPDM/FKM)
  • Spring & Hardware (SS304/SS316)
Type 6A Seal

Type 6A

More +

PARAMETERS

  • Pressure: Up to 75 psi
  • Temperature: -40 to 400° F [-40 to 204° C]
  • Speed: Up to 2500 fpm (13 m/s)

FEATURES

  • Full-convolution elastomer bellows ensure flexibility, compensating for shaft movement while minimizing torsional stress with a dent and groove positive drive design.
  • For spa applications, carbon primary rings and elastomers are available, providing added durability in high-temperature environments.

MATERIALS

  • Face/Primary Ring (Thermoset Carbon / Sintered Carbon / SiC)
  • Seat/Mating Ring (Alumina/SiC)
  • Secondary Seal (NBR/EPDM/HNBR/FKM)
  • Spring & Hardware (SS304/SS316)
Type 2100 Seal

Type 2100

More +

PARAMETERS

  • Pressure: Up to 150 psi
  • Temperature: -30 to 300° F [-34 to 149° C]
  • Speed: Up to 3000 fpm (15 m/s)

FEATURES

  • Full-convolution bellows and an interlocking drive band, these seals provide superior tolerance to misalignment and ensure a positive drive for reliable performance.
  • Carbon primary rings as standard and graphite-loaded silicon carbide as an option, the Type 2100 is built for durability
  • Various elastomers and stainless steel construction ensure long-lasting performance in demanding applications

MATERIALS

  • Face/Primary Ring (Carbon/SiC/TC)
  • Seat/Mating Ring (Alumina/SiC/TC)
  • Secondary Seal (NBR/EPDM/FKM)
  • Spring & Hardware (SS304/SS316)

See More Pool & Spa Sealing Solutions >

Carbon Products

Carbon Bushings

Carbon Bushings

More +

Ergoseal specializes in producing carbon-graphite bushings for high volume OEM applications.  Trust Ergoseal's expertise to provide reliable and high-performance carbon bushings for your industrial needs.

Download Spec Sheet

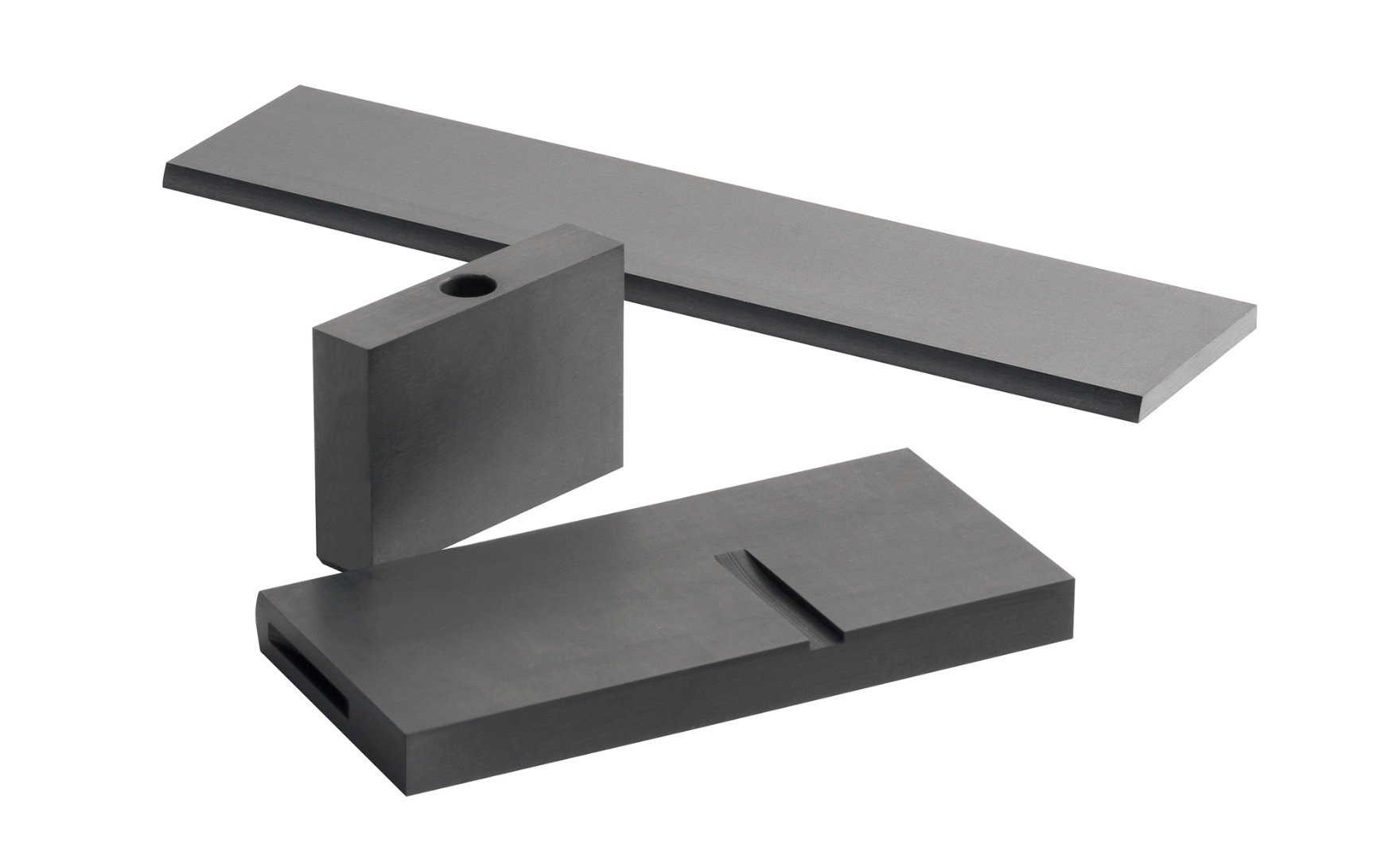

Carbon Vanes

Carbon Vanes

More +

Ergoseal's carbon graphite vane material is ideal for your dry running vacuum pumps and compressors.

Download Spec Sheet

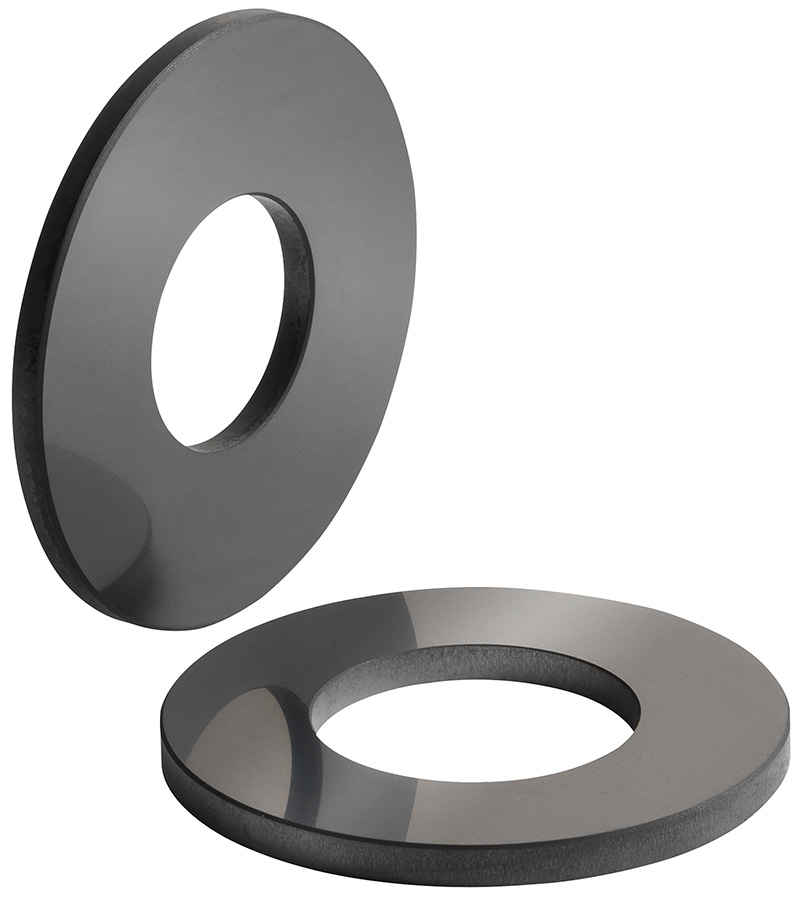

Carbon Thrust Pads

Carbon Thrust Pads

More +

Ergoseal supplies carbon thrust pads that are resin or metal impregnated, and precision-matched to your specific requirements.

Download Spec Sheet

See More Carbon Product Types >

OEM Replacement Seals

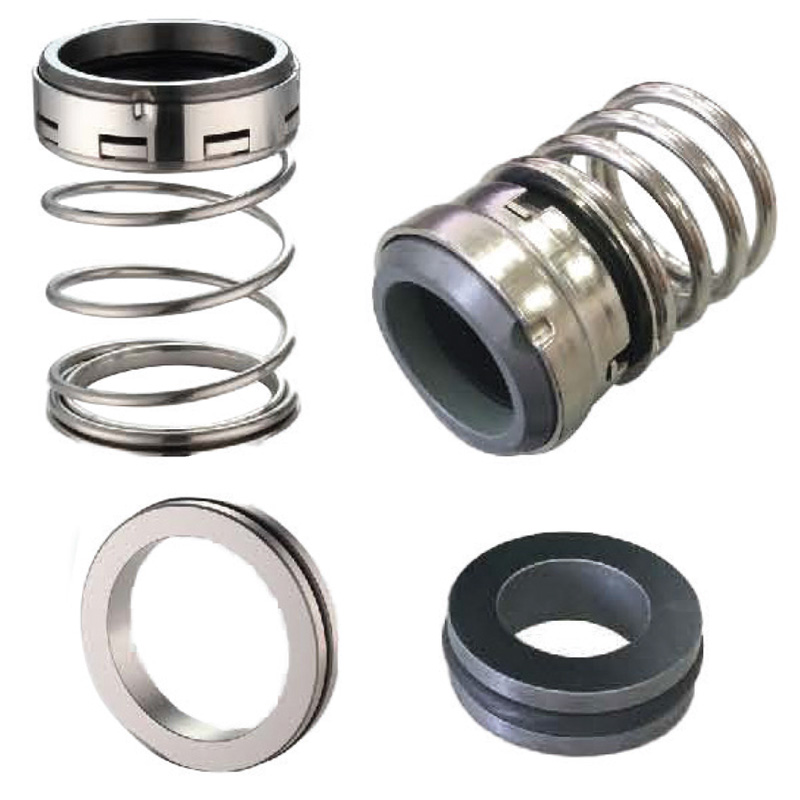

RB-10 OEM Replacement Seal

John Crane®

More +

Please contact us for a quote on John Crane® equivalent seals.

Download Spec Sheet

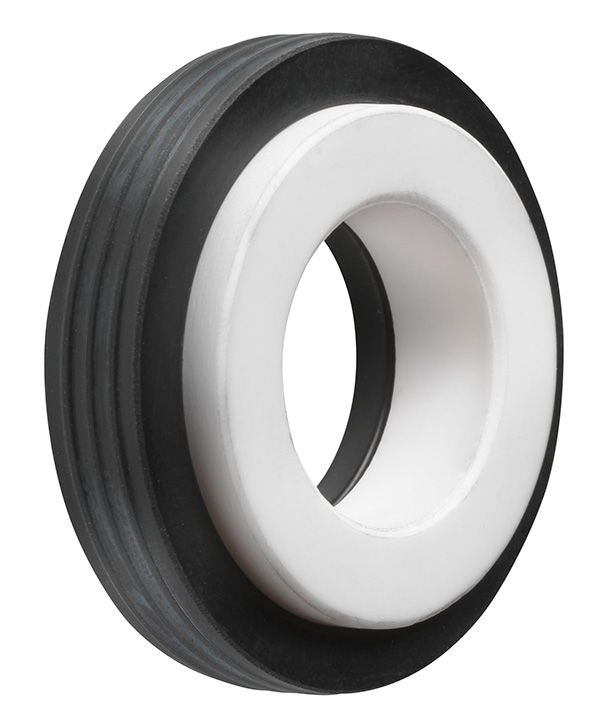

Cup Mounted Seat

Seat Components

More +

Please contact us for a quote on Seat Components.

MATERIALS

  • Alumina
  • Silicon Carbide
  • Tungsten Carbide

FEATURES

  • ID/OD O-Ring Mount
  • ID/OD Cup Mounted

Learn More About OEM Replacement Seals >

Who We Work With



At Ergoseal, we are proud to partner with companies that demand high-performance seals and sealing solutions. Our expertise is best suited for organizations with large-scale production and complex engineering requirements.

Our customers include:
✔ A broad range of industries including industrial OEMs, aerospace, government, and pool & spa companies
✔ Businesses with at least $50M in annual revenue
✔ Procurement and engineering professionals, including supply chain managers, design engineers, and commodity managers
✔ Companies primarily based in North America, with an expanding presence in Europe

Expect more from Ergoseal

By following our proven process, we give our customers the confidence that they can always expect the right solution in a timely fashion – from quotes to products and ongoing production.



ERGO-edge-notitle

Have a seal project? We can help.

For over 35 years, Ergoseal has been a trusted supplier of high-quality sealing solutions, earning Preferred Supplier Status with leading global brands. We design and manufacture seals ranging from drop-in replacements to fully customized options.

Let our experts help you find your perfect solution today.
