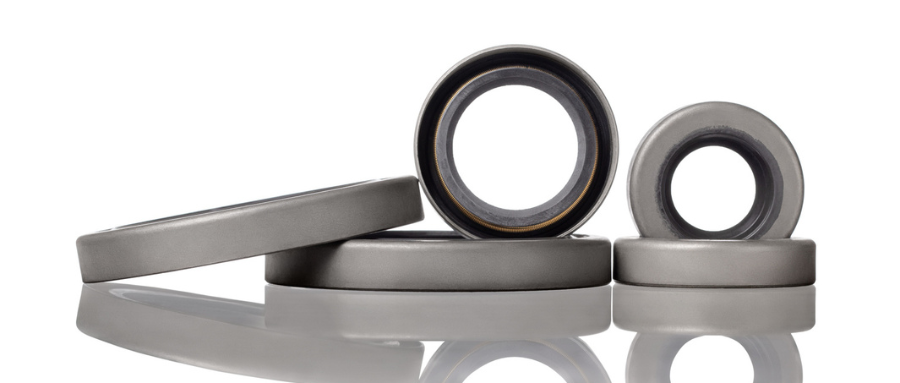

9 Factors That Make Rotary Lip Seals Fail Under Pressure

High-pressure rotary lip seals fail prematurely due to nine common factors: excessive operating pressure, incorrect shaft surface finish, shaft runout, lip material incompatibility with process fluid, thermal range mismatches, inadequate lubrication, installation damage, improper bore housing fit, and speed-pressure combinations that exceed the seal's PV rating. Most failures are preventable through proper material selection, shaft and bore preparation, and installation practice.

In This Blog:

• Operating Pressure That Exceeds Lip Geometry Tolerance
• Shaft Surface Finish Outside the Acceptable Range
• Shaft Runout and Eccentricity
• Lip Material Incompatibility With Process Fluid
• Thermal Operating Range Mismatches
• Inadequate or Incompatible Lubrication at the Seal Interface
• Installation Damage
• Bore Housing Fit and Retention
• Speed-Pressure Combinations That Exceed the Seal's PV Rating

High-pressure rotary lip seals are doing demanding work. They maintain a dynamic sealing interface on a continuously rotating shaft while managing pressure differentials, fluid contamination, thermal variation, and mechanical load — often in legacy equipment where design tolerances have widened over years of service. When they fail, the consequences range from costly unplanned downtime to full equipment replacement.

The good news: most premature seal failures are preventable — not by upgrading to a more expensive seal catalog entry, but by understanding the specific mechanisms that cause wear and addressing them in design, material selection, and installation.

Here are the nine factors OEM engineers should evaluate when specifying or troubleshooting high-pressure rotary lip seals.

1. Operating Pressure That Exceeds Lip Geometry Tolerance

Standard lip seal designs are engineered for defined pressure ranges. When system pressure — static or dynamic — exceeds the seal's rated capacity, the lip deforms. That deformation changes the contact angle and load distribution against the shaft, accelerating wear and creating leak paths that grow with each pressure cycle.

What to check: Review your pressure envelope against the seal's design specs, including peak transient pressure, not just steady-state operating pressure. For high-pressure applications, spring-loaded lip configurations or PTFE lips with pressure-assist geometry may be more appropriate than standard elastomeric designs.

2. Shaft Surface Finish Outside the Acceptable Range

Lip seal longevity depends heavily on the shaft surface it contacts. A shaft that's too rough tears away lip material. One that's too smooth holds a hydrodynamic lubricating film poorly, causing dry running, which generates heat and accelerates wear from the other direction.

The standard recommendation for rotary shaft sealing is a plunge-ground finish of 8-16 µin Ra with no lead. A lead pattern on the shaft surface acts like a thread, actively pumping fluid past the seal.

What to check: Shaft finish specifications in legacy equipment are frequently undocumented or allowed to drift during refurbishment. Measure before installing replacement seals for rotating equipment.

3. Shaft Runout and Eccentricity

Runout — radial displacement of the shaft during rotation — forces the lip to follow the shaft's eccentric path with every revolution. At moderate speeds, the lip can track this movement. Above certain runout thresholds, the lip loses contact intermittently, allowing pressure spikes and fluid bypass. Over time, this cyclical tracking stress fatigues the lip elastomer.

TIR (total indicator runout) limits vary by seal design and shaft speed, but values above 0.005 inches (0.127 mm) are commonly problematic for dynamic lip seals under pressure.

What to check: Runout specifications should be part of the shaft qualification process for any new OEM design-in. In replacement scenarios, worn bearings are frequently the root cause of runout that was not present at the original installation.

4. Lip Material Incompatibility With Process Fluid

Elastomers swell, harden, or chemically degrade when exposed to fluids outside their chemical compatibility range. NBR (Buna-N) is adequate for petroleum-based fluids but degrades in water-based systems and many synthetic lubricants. FKM (Viton) handles a broader chemical range but has limits at very low temperatures. PTFE is chemically inert across most process fluids but requires different design geometry to function effectively as a dynamic lip.

Degradation often presents as lip cracking, excessive swelling that increases contact force and heat generation, or softening that allows extrusion under pressure.

What to check: Fluid compatibility data from the elastomer manufacturer should be referenced at your actual operating temperature, not room temperature — chemical compatibility behavior changes significantly with heat.

5. Thermal Operating Range Mismatches

Lip seals have a functional temperature window defined by the elastomer's glass transition temperature at the low end and oxidative degradation at the high end. Operating outside this window changes lip hardness, which changes contact force and sealing geometry.

In high-pressure rotary applications, heat generation is not only an environmental factor — friction between the lip and shaft generates heat locally at the sealing interface. If that interface heat isn't managed through lubrication, material selection, or application design, the lip sees temperatures significantly above ambient.

What to check: Specify lip material based on combined environmental and frictional operating temperature, not ambient temperature alone. For high-speed, high-pressure applications, consult with the seal manufacturer on expected interface temperatures.

6. Inadequate or Incompatible Lubrication at the Seal Interface

Rotary lip seals are not designed to run dry. The lip-to-shaft interface requires a thin lubricating film — ideally from the process fluid in flooded applications, or from grease packing in others. Without it, frictional heat builds, the lip hardens, cracks, and wear accelerates dramatically.

Lubrication failures are common in replacement scenarios where the original lubrication method has changed, or where a seal is installed in a position where it no longer contacts the process fluid it was designed to run against.

What to check: Confirm the lubrication source for the seal interface in both new and replacement applications. For applications where process fluid lubrication is inconsistent or absent, evaluate grease-compatible seal designs or lip configurations with integral lubricant reservoirs.

7. Installation Damage

A significant percentage of lip seal failures trace back to installation. Common damage mechanisms include:

• Lip inversion during press-fit installation, particularly in blind bore applications
• Lip nicking or scoring from threading over sharp shaft keyways, splines, or threads without a lead-in tool
• Cocking (non-perpendicular installation) that creates uneven contact load around the shaft circumference
• Bore damage from improper press force that distorts the seal OD and compromises housing fit

This damage is often invisible during installation and only becomes apparent as premature leakage.

What to check: Installation tooling that centers the seal and applies force evenly across the OD is not optional for production environments. For shafts with keyways or threads, use installation sleeves. Verify bore concentricity and finish before installation.

8. Bore Housing Fit and Retention

A lip seal's static seal — its OD to bore interface — must maintain interference fit across the operating temperature range. Too little interference allows rotation or displacement of the seal in the bore. Too much creates distortion that affects lip geometry and can crack the seal body.

Housing bore tolerances, surface finish, and material (particularly thermal expansion differences between aluminum housings and steel seals) all affect this. Legacy equipment with worn or out-of-tolerance bores is a common source of installation-length seal failures.

What to check: Bore diameter, finish, and chamfer specifications should be verified against the seal manufacturer's installation requirements. For aluminum housings running against steel seals in wide temperature ranges, review OD interference requirements at both temperature extremes.

9. Speed-Pressure Combinations That Exceed the Seal's PV Rating

PV rating — the product of contact pressure (P) and surface velocity (V) at the sealing interface — defines the tribological operating limit for any given lip seal design and material combination. Exceeding this limit generates heat faster than it can be dissipated, causing the lip to degrade rapidly regardless of other design choices.

High-pressure, high-speed applications push PV harder than either parameter alone would suggest, because both variables contribute simultaneously to interface heat. This is where standard catalog seals frequently fall short, and where custom OEM seal configurations with engineered lip geometry, reinforced designs, or PTFE compounds are often the right solution.

What to check: Calculate the PV index for your application and compare against the seal manufacturer's published rating for the specific lip material and configuration. For applications near or above standard ratings, work with the manufacturer on custom configurations designed for your specific speed-pressure envelope.

Designing for Longevity From the Start

Rotary lip seals fail for predictable reasons. Most of them are addressable at the design stage — through material selection matched to the actual operating environment, shaft and bore specifications developed in collaboration with the seal manufacturer, and installation processes that protect the seal interface from the moment of assembly.

For OEM design engineers specifying seals in new equipment, or engineering teams sourcing replacement seals for legacy rotating equipment, the performance window is well-defined. Understanding where your application sits within that window — and where it challenges the limits — is the foundation for a sealing solution that holds up over the full service life.
